Description

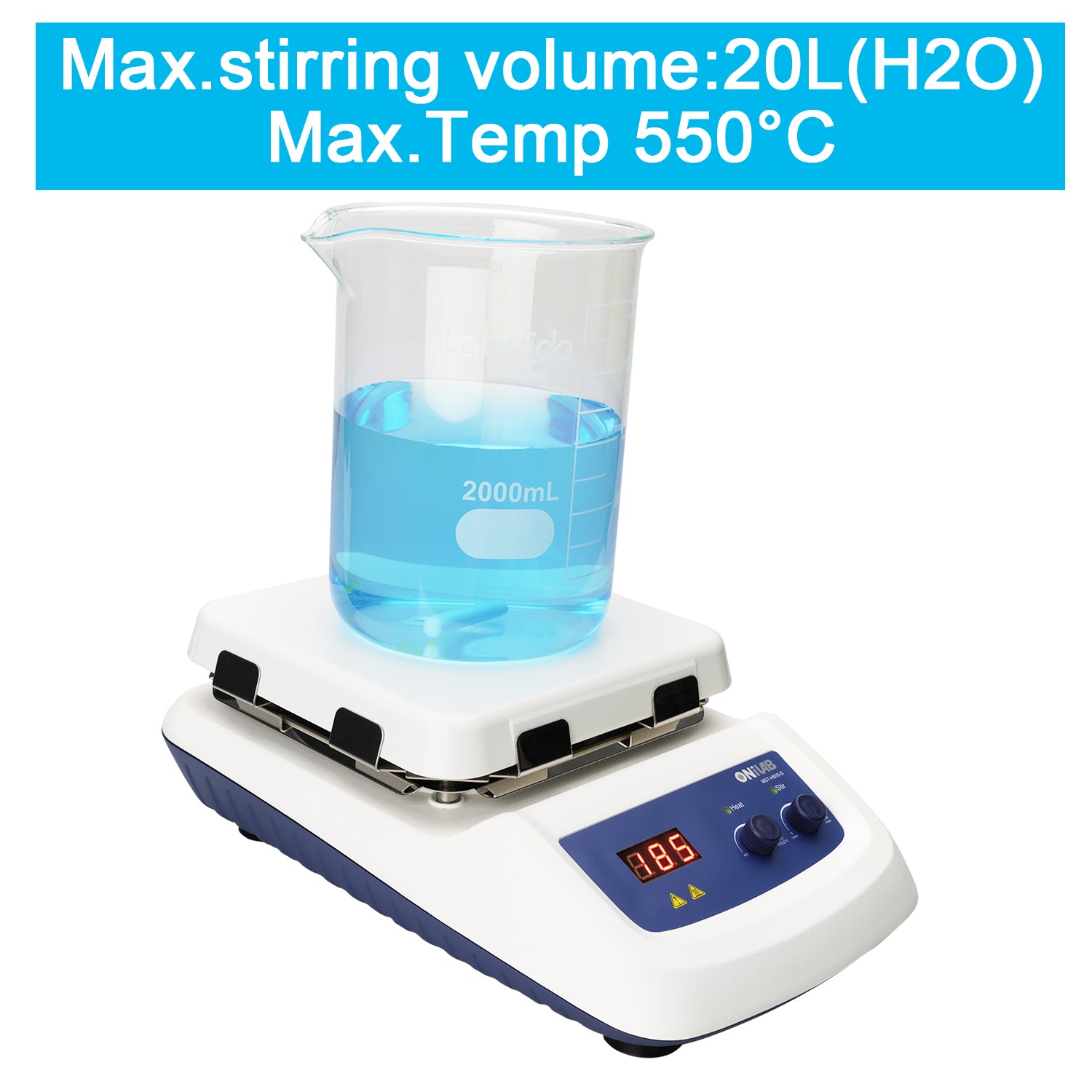

- Accurate Temperature Control and Excellent Heating Capacity : LED/LCD display for precise temperature up to 550°C ,adjustable speed range 0-1500rpm(LED display)/100-1500rpm(LCD display)with max stirring capacity 20L(H2O). Equip with internal temperature sensor and external temperature probe sensor with accuracy of 0. 2°C. Automatically identifies temperature sensor and switches to probe mode when it is plugged in.

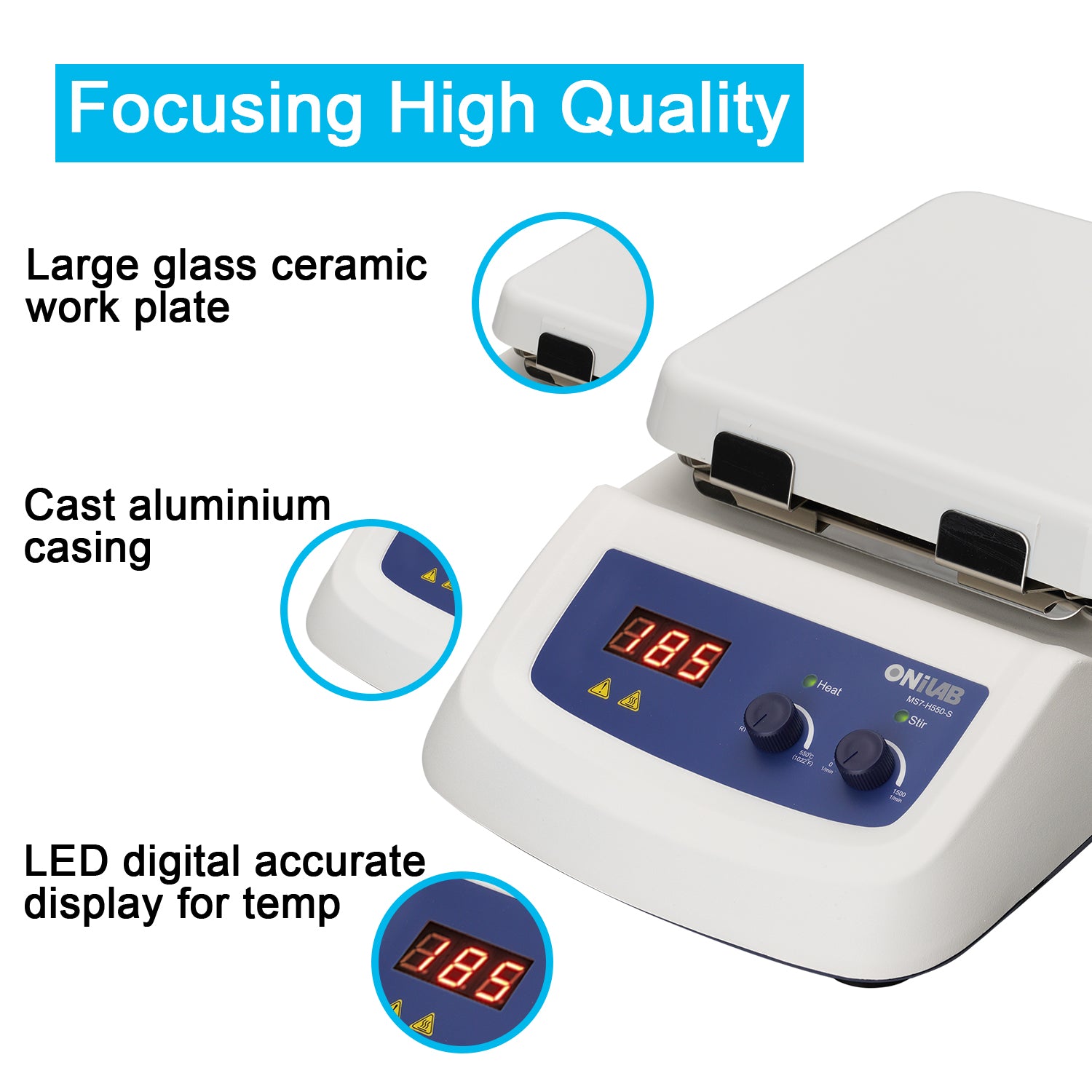

- High Quality Lab Materials : Glass ceramic work plate provides excellent chemical resistant and most efficient heat transfer(fast heating and cooling). Cast aluminium casing is high-temperature resistant and strong flame-retardant

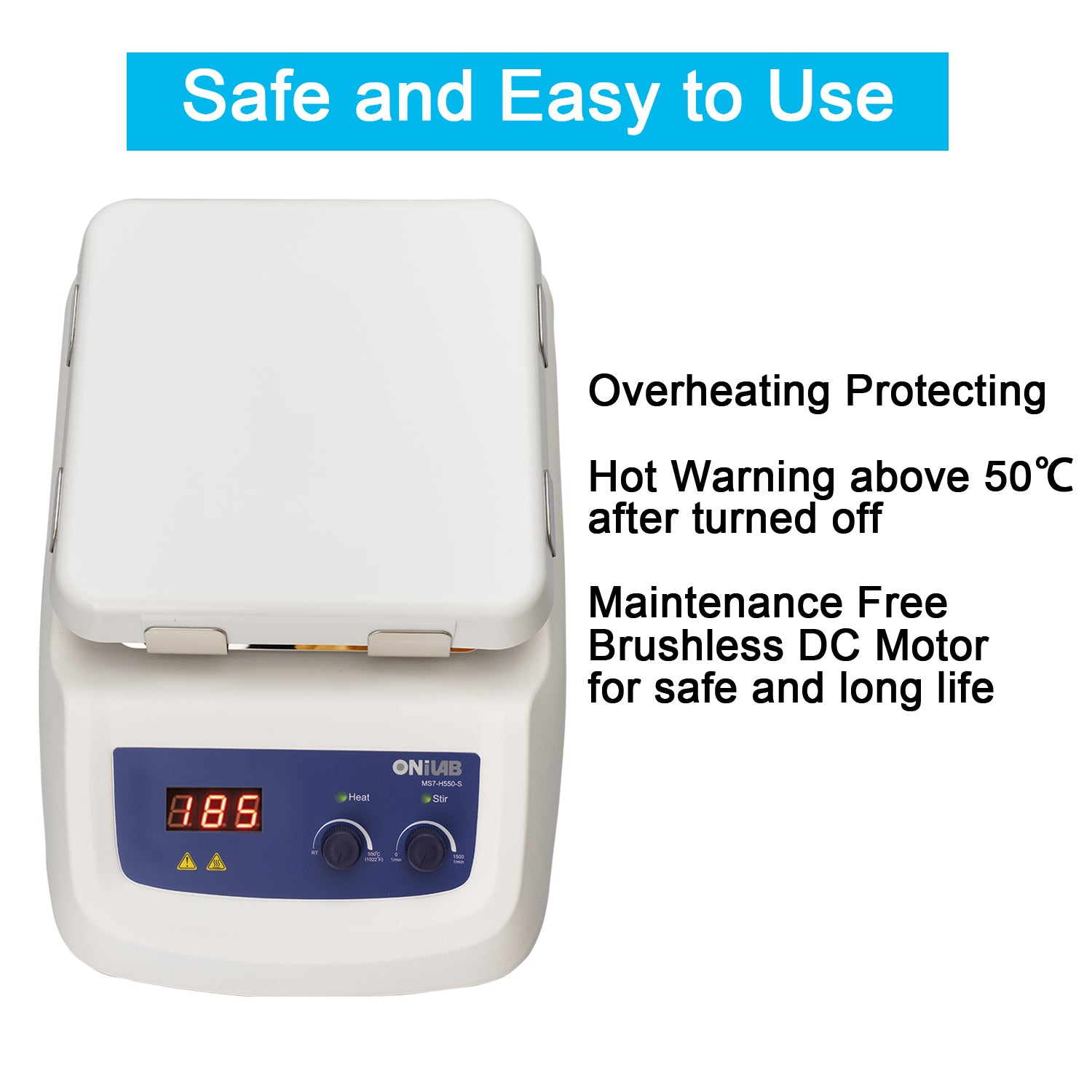

- HOT WARNING above 50℃for safety: The “HOT” warning will flash when the work plate temperature is above 50°C after the hotplate is turned off to prevent burns

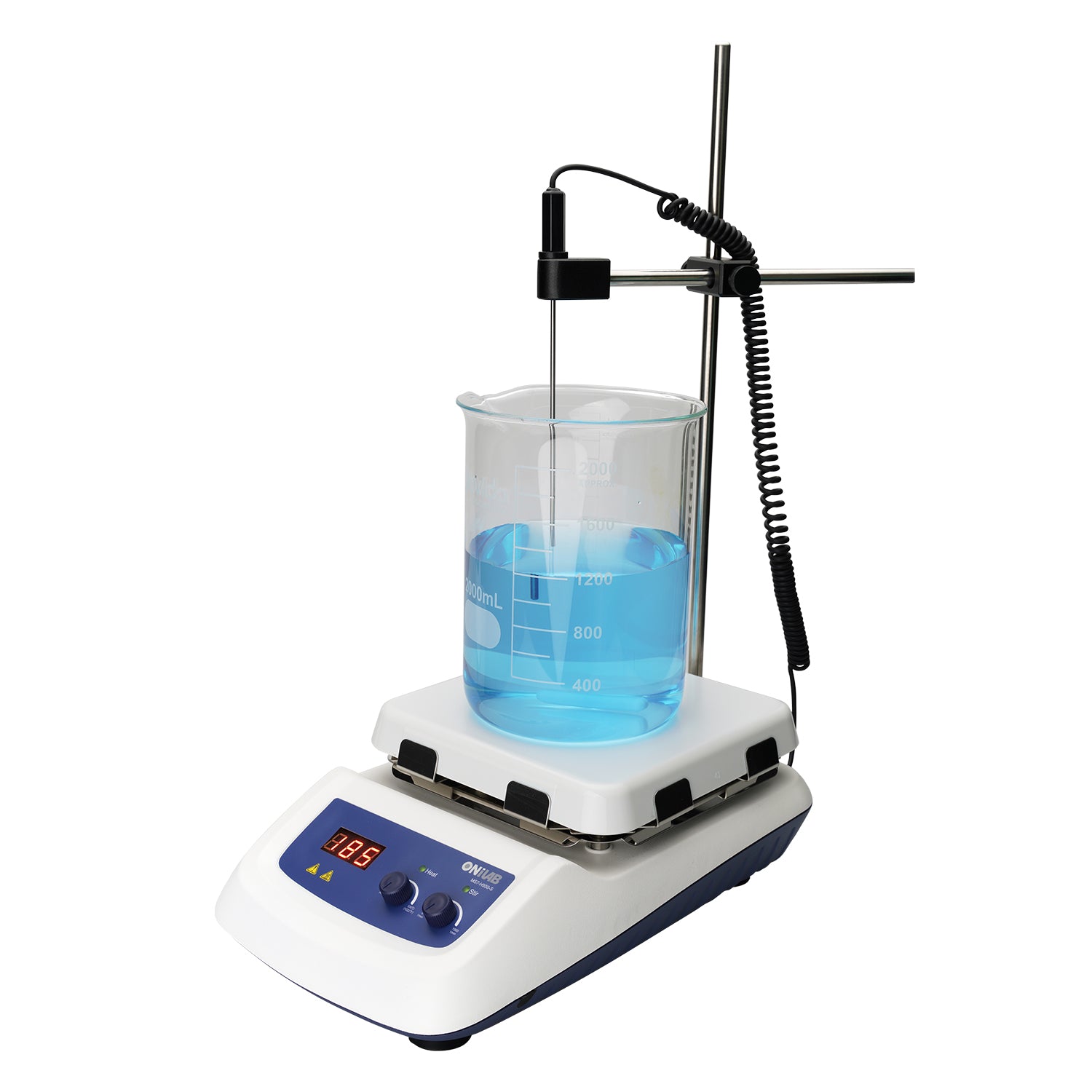

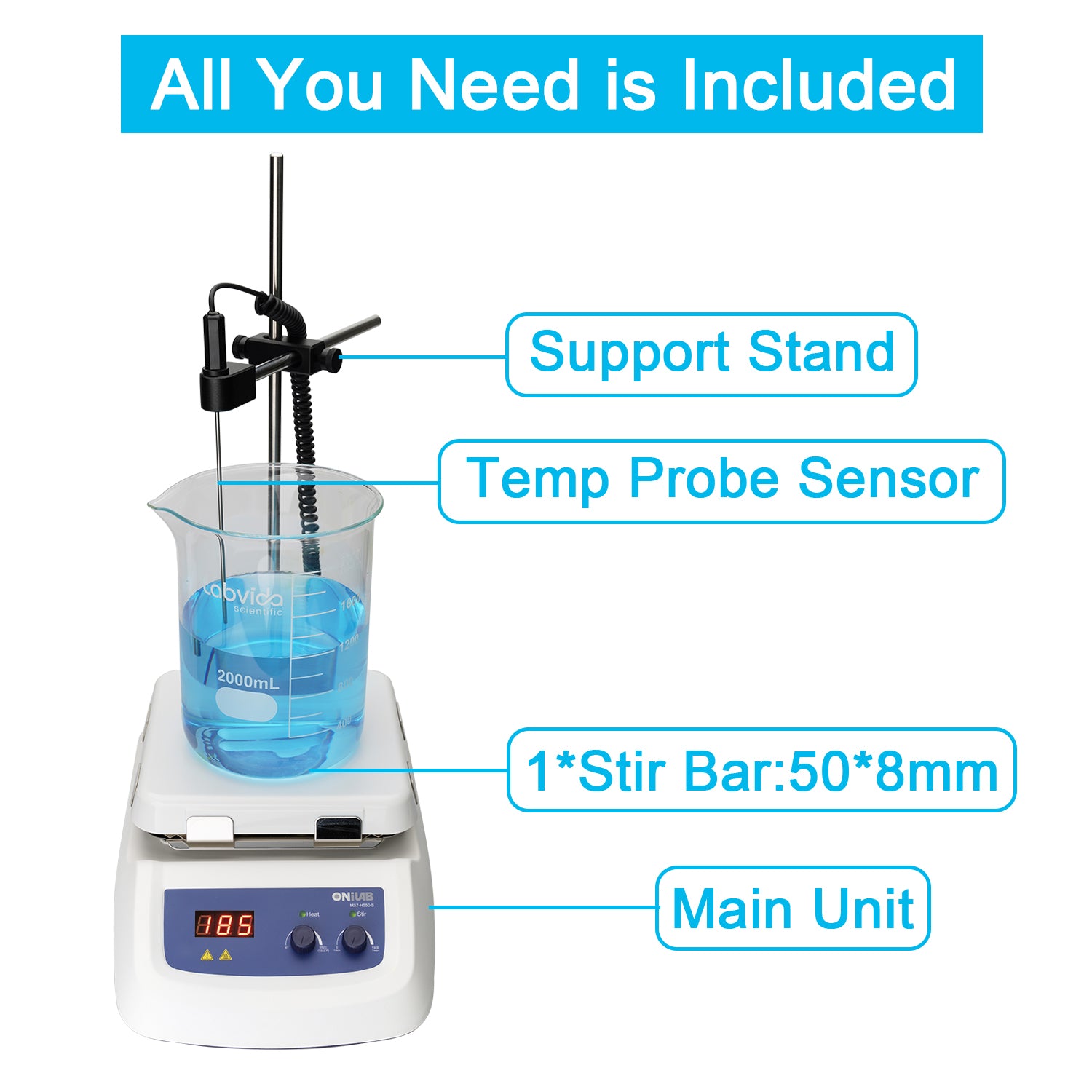

- Easy Use and All You Need is included: Two rotating knobs enable easy and smooth adjustment of speed and temperature, the package contain temp probe sensor & support stand & stirring Bar
- Two Year Warranty from ONiLAB: We are manufacturer that has more than 20 years experience in the field of lab products, for this machine we provide 2 year warranty, Any questions, please contact us directly and we will provide best service to each customer.
Specifications:
- Work plate Dimension [W x D]: 184x184mm (7 inch)
- Work plate material: Glass ceramic
- Motor type: Brushless DC motor
- Motor rating input: 18W
- Motor rating output: 10W
- Power: 1050W
- Heating output:1000W
- Voltage: 100V 50/60Hz
- Stirring positions: 1Max. stirring quantity, [H2O]: 20L
- Max. magnetic bar[length]: 80mm
- Speed range: 100-1500rpm resolution ±1rpm(LCD display)/0-1500rpm(LED display)
- Temperature range: Room Temp. -550°C, increment 1°C(LCD display)/-550°C, increment 5°C(LED display)
- Temperature control accuracy: ±1°C(<100°C) ±1%(>100°C)(LCD display)/±10°C(LED display)
- Overheating protection: 580°C
- Temperature display accuracy:±0.1°C (LCD display)/±1°C (LED display)
- "Hot" warning: 50°C
- Protection class: IP21

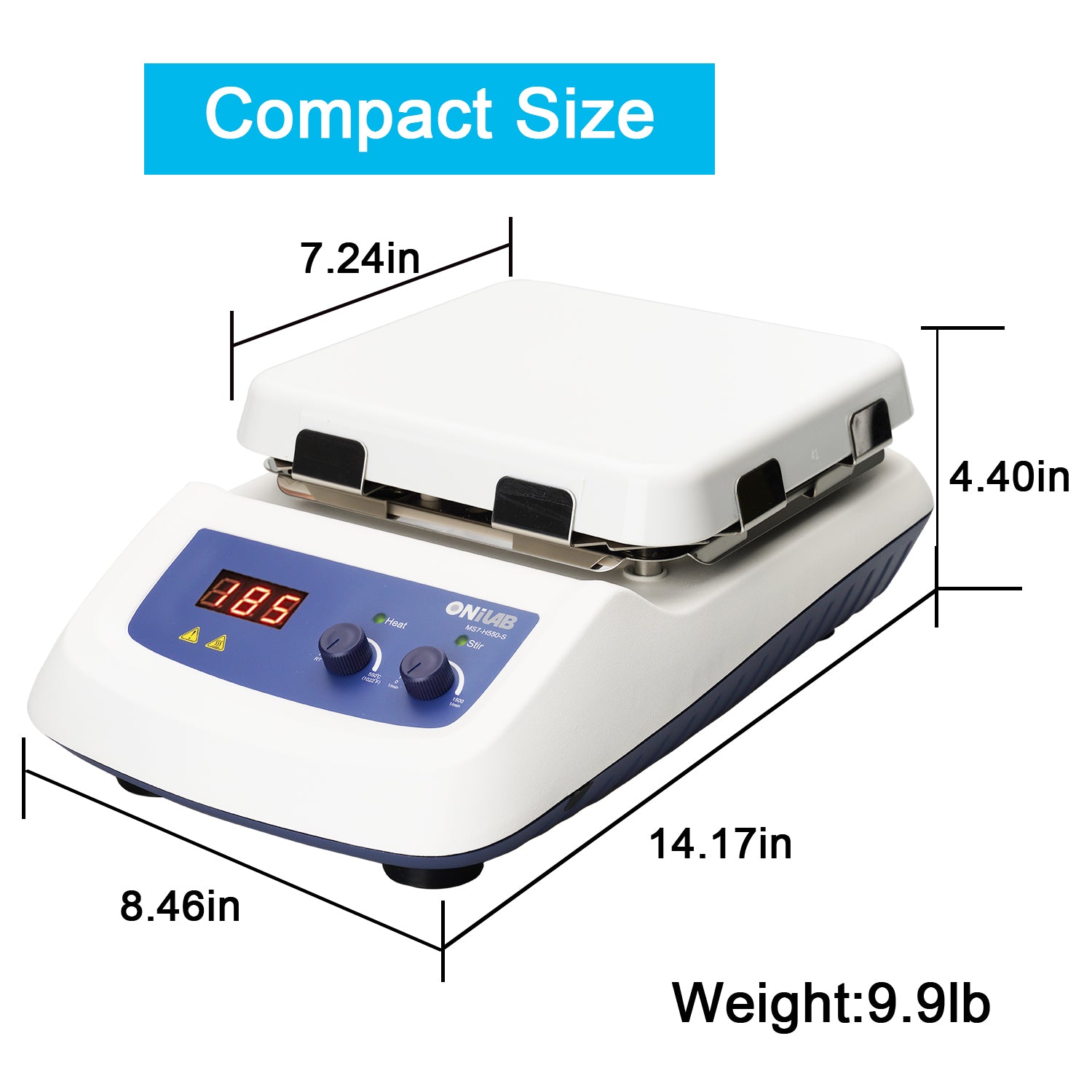

- Dimension [WxDxH]: 215x360x112mm
- Weight: 5. 3kg
7” inch hotplate magnetic Stirrers are suitable for various heating and mixing applications with excellent chemical resistance, compact shape and efficient heat transfer. They are widely used in every field of science like biology, chemistry, physical science, pharmaceutical science etc.
Tips:
1 Please heat without connecting probe if the accurate temperature control of the liquid is not required ,without probe the hotplate will heat at large power, but when connecting the probe, the hotplate will reduce the power for accurate temperature control
2 There are some ways to speed up the heating time when connecting the probe, these ways are used by a lot of laboratory
a. Put a lid on the beaker.
b. Wrap the beaker with some heat insulation cotton
Model | MS7-H550-Pro | MS7-H550-S |
Image | ||
Work Plate Dimension[W×D] | 184mm×184mm(7 inch) | 184mm×184mm(7 inch) |
Work Plate Material | Glass Ceramic | Glass Ceramic |
Motor Type | Brushless DC Motor | Shaded Pole Motor |
Stirring Positions | 1 | 1 |
Max. stirring Quantity, [H₂O] | 20L | 10L |
Max. magnetic Bar[Length] | 80mm | 80mm |
Speed Range | 100-1500rpm, resolution±1rpm | 0-1500rpm |
Speed Display | LCD | Scale |
Temperature Display | LCD | LED |
Heating Temperature Range | Room Temp. -550°C, increment 1°C | Room Temp. -550°C, increment 5°C |
Temperature Control Accuracy | ±1°C(<100°C)±1%(<、>100°C) | ±10°C |
Overheating Protection | 580°C | 580°C |
Temperature Display Accuracy | ±0.1°C | ±1°C |
External Temperature Sensor | PT1000(Accuracy±0.2°C) | PT1000(Accuracy±0.2°C) |
"Hot" Warning | 50°C | 50°C |
Data Connector | RS232 | - |
Protection Class | IP21 | IP21 |
Motor Rating Input | 18W | 15W |
Motor Rating Output | 10W | 1.5W |
Power | 1050W | 1030W |
Heating Output | 1000W | 1000W |
Voltage | 100-120/200-240V,50.60Hz | 100-120/200-240V,50.60Hz |
Dimension[W×D×H] | 215×360×112mm | 215×360×112mm |
Weight | 5.3kg | 4.5kg |
Timer Function | - | - |
Permissible Ambient Temperature And Humidity | 5-40°C,80%RH | 5-40°C,80%RH |
