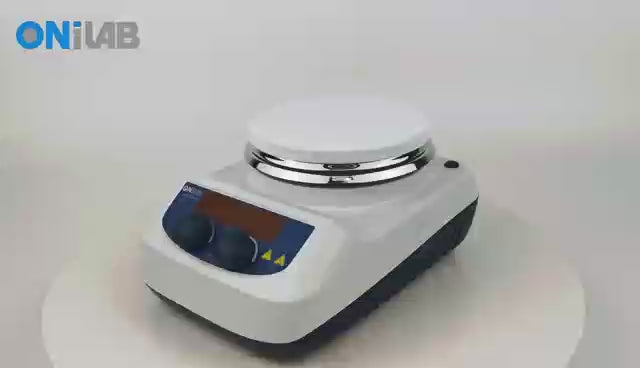

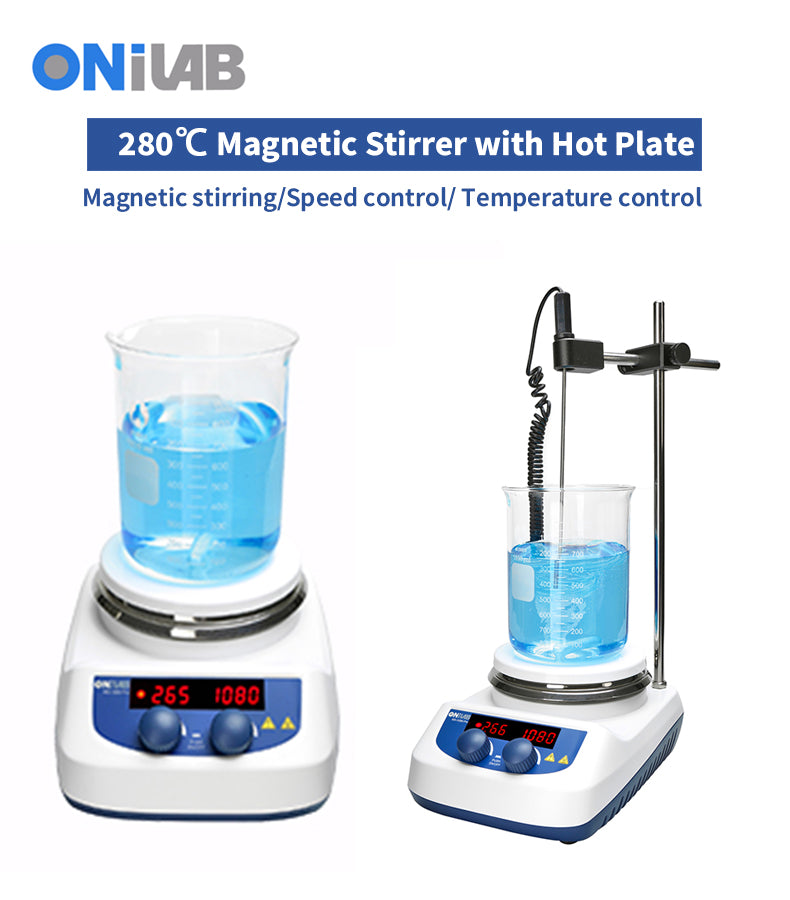

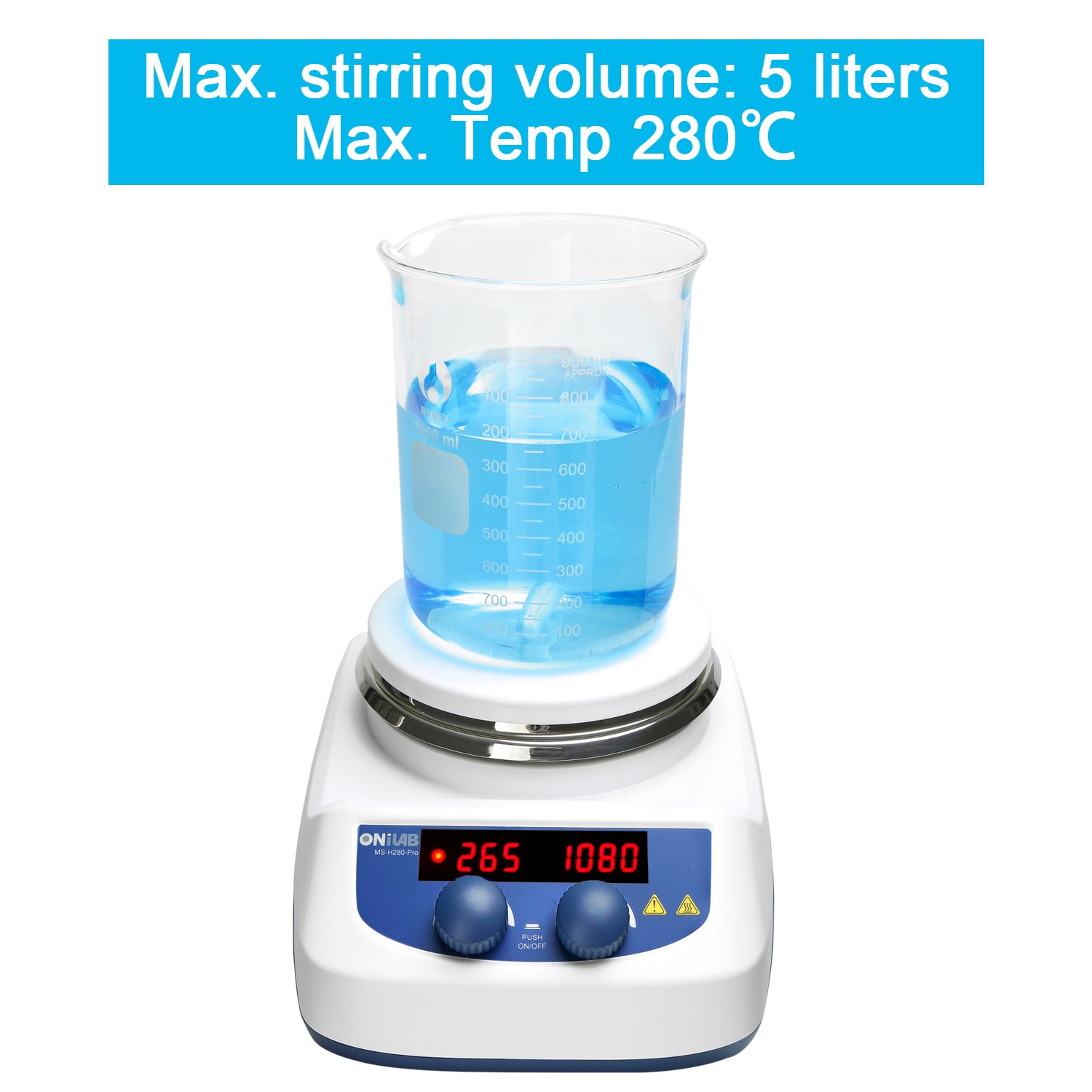

ONiLAB 280℃ 5 inch LED Digital Hotplate Magnetic Stirrer with Ceramic Coated Stainless Steel Work Plate with Support Stand and1pc Stirring Bar （Bar set machine with addtional 8pcs bars）

• Accurate Temperature Control and Excellent Heating Capacity : Equip with internal temperature sensor and PT1000 external temperature probe sensor with accuracy of 0. 5°C, Automatically identifies temperature sensor PT1000 and switches to probe mode when it is plugged in. Ceramic coated stainless steel hotplate with good chemical resistance, fast heat transfer and cool-down.
• Easy Use and Excellent Stirring Capacity : Maximum stirring quantity can reach up to 5L and max 3L at max speed 1500rpm , the speed control and heat control buttons are easy to use and adjust

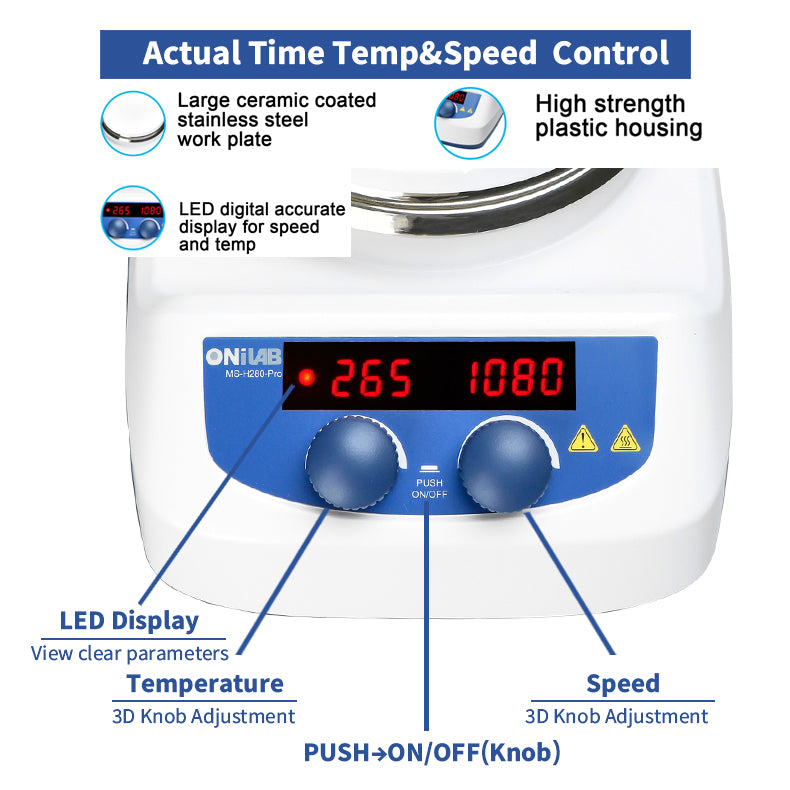

• Precise Temperature and Speed Control for Wide Use: LED digital display allows for precise temperature and speed setting for the heating and stirring functions.Widely for industrial, agricultural, medical and health, scientific research institutions, colleges and universities laboratory liquid mixing heating

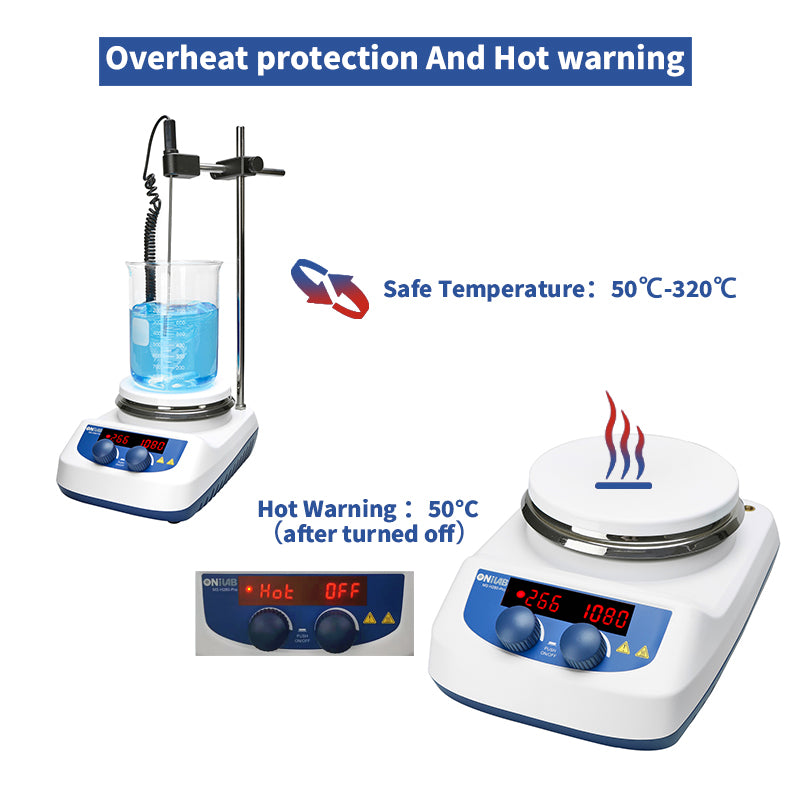

• HOT WARNING AT 50℃and High Quality Lab Materials : the “HOT” warning will flash when the work plate temperature is above 50°C even if the hotplate is turned off to prevent burns, high strength plastic casing is high-temperature resistant and strong flame-retardant, brushless DC motor is maintenance free and ensure long lifetime
• Two Year Warranty from Manufacturer: We are manufacturer that has more than 20 years experience in the field of lab products, for this machine we provide 2 year warranty

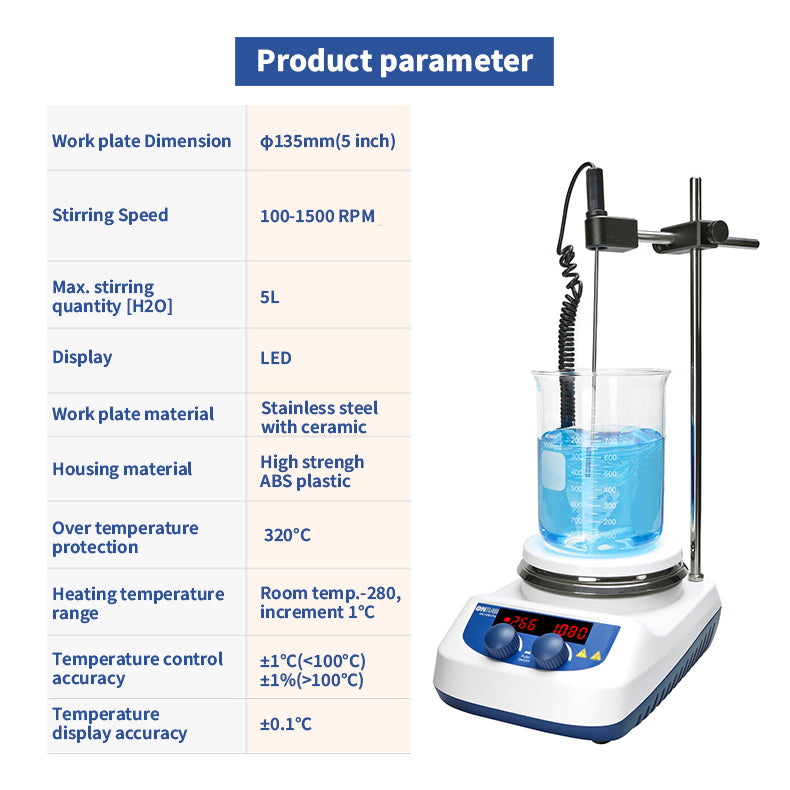

Specifications:

• Motor type:Brushless DC motor
• Voltage: 100-120V, 50/60Hz
• Max. stirring quantity: 5L
• Speed range: 100-1500rpm
• Speed display resolution: ±1rpm
• Heating temperature range: Room temp.-280, increment 1°C
• Control accuracy of work plate: ±1°C(<100°C) ±1%(>100°C)
• Overheating protection: 320°C
• Temperature display accuracy: ±1°C

Packing list(Standard machine ):

• 1 x Magnetic Stirrer
• 1 x 1pcs/PTFE Magnetic Stir Bar

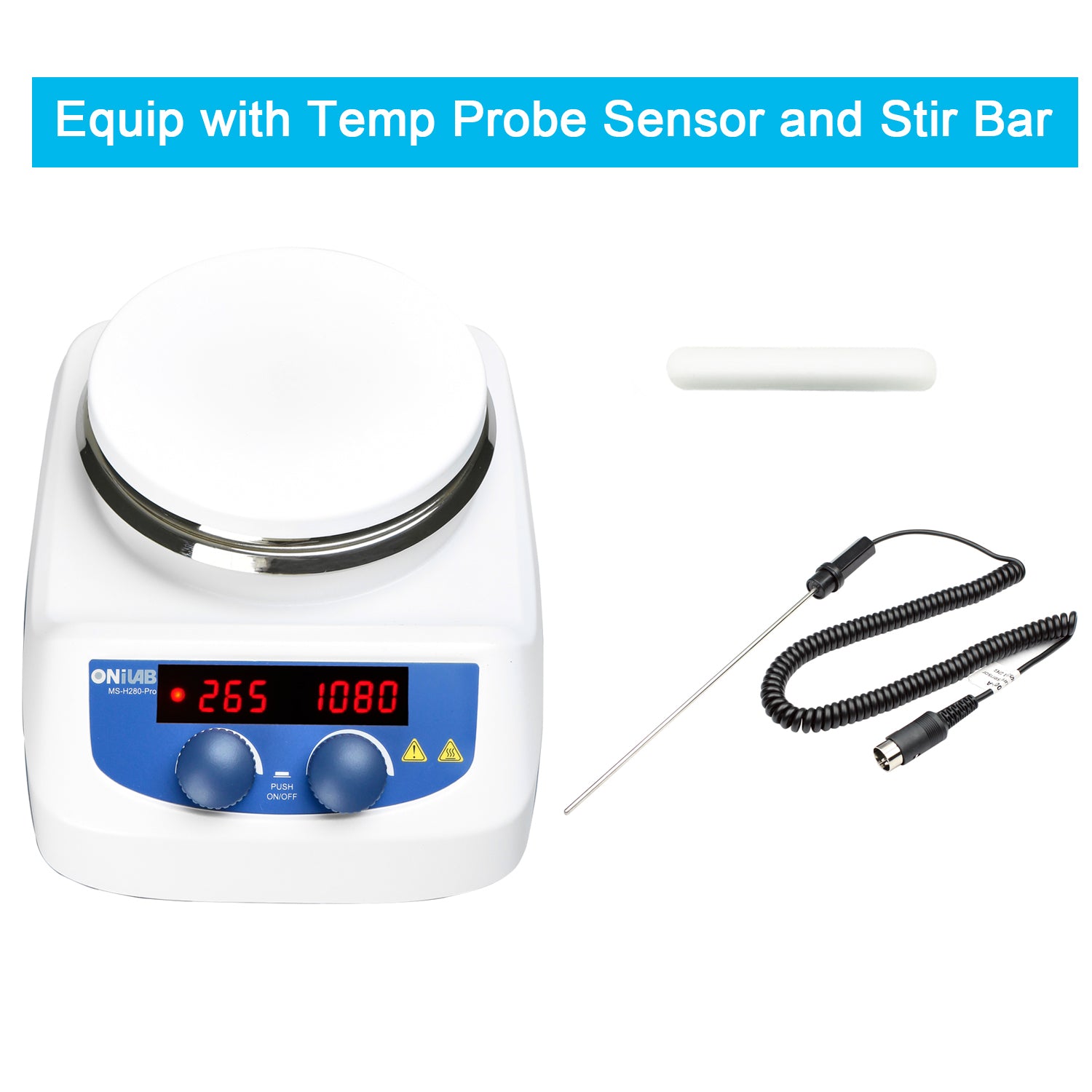

• 1 x Temperature Probe Sensor
• 1 x Support Stand
• 1 x Power Adaptor



Packing list( Standard machine with bars set)

• 1 x Magnetic Stirrer
• 1 x 8pcs/Pack Mixed Size PTFE Magnetic Stir Bars
• 1 x 1pcs/PTFE Magnetic Stir Bar
• 1 x Temperature Probe Sensor
• 1 x Support Stand
• 1 x Power Adaptor




8PCS Bars Set
● Cylinder Shape: 2pcs,8*50mm(Diameter*Length)
● Cylindrical with ring:2pcs,8*40mm(Diameter*Length)
● Olive shape: 2pcs,8*30mm(Diameter*Length)
● Cross shape: 2pcs,25*25mm(Diameter*Length)



ONiLAB MS-H280-Pro is a perfect device for handling small volume task on daily application, as a low temperature magnetic stirrer with max. temperature at 280°C; These magnetic stirrers deliver powerful and smooth mixing and safe heating. These are useful in biological, physical, education, food Industry, etc. These are designed to be useful for biological laboratory applications where weak acids/bases only are used.



Tips

• Please heat without connecting probe if the accurate temperature control of the liquid is not required ,without probe the hotplate will heat at large power, but when connecting the probe, the hotplate will reduce the power for accurate temperature control
• There are some ways to speed up the heating time when connecting the probe, these ways are used by a lot of laboratory

a. Put a lid on the beaker.
b. Wrap the beaker with some heat insulation cotton
