Description

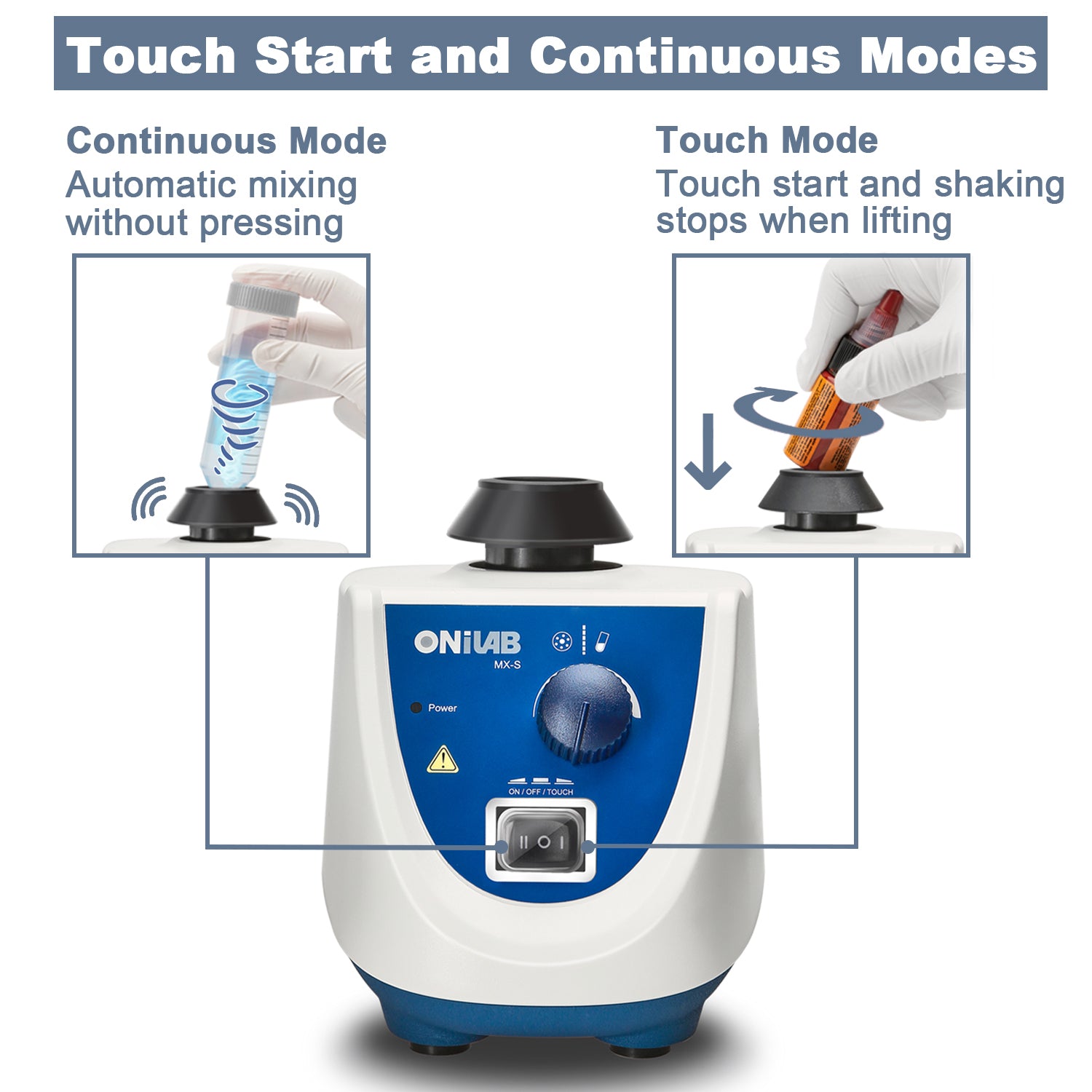

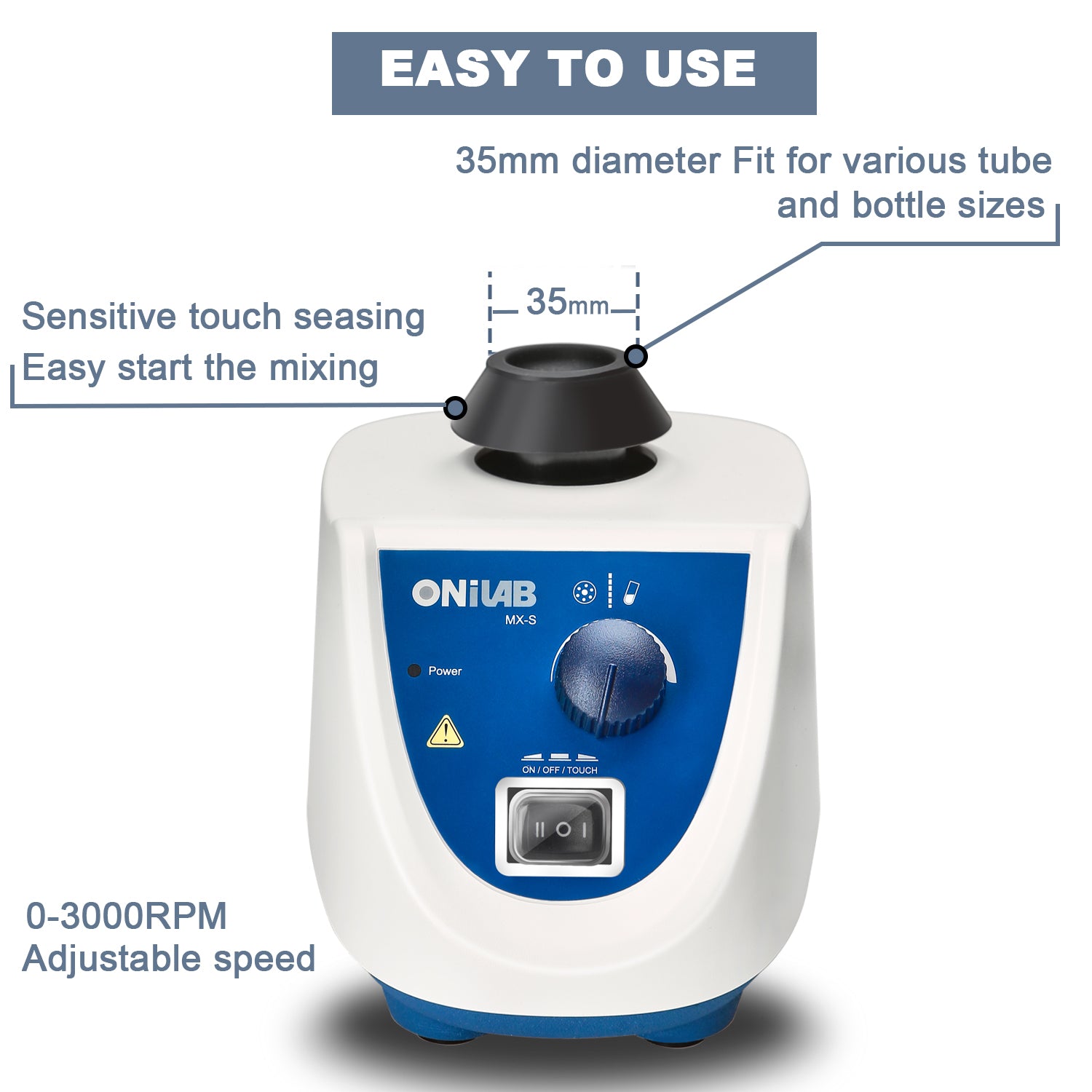

- Touch start operation and Continuous mixing function are available, Touch model allow one-handed operation and shaking stops when tube is lifted

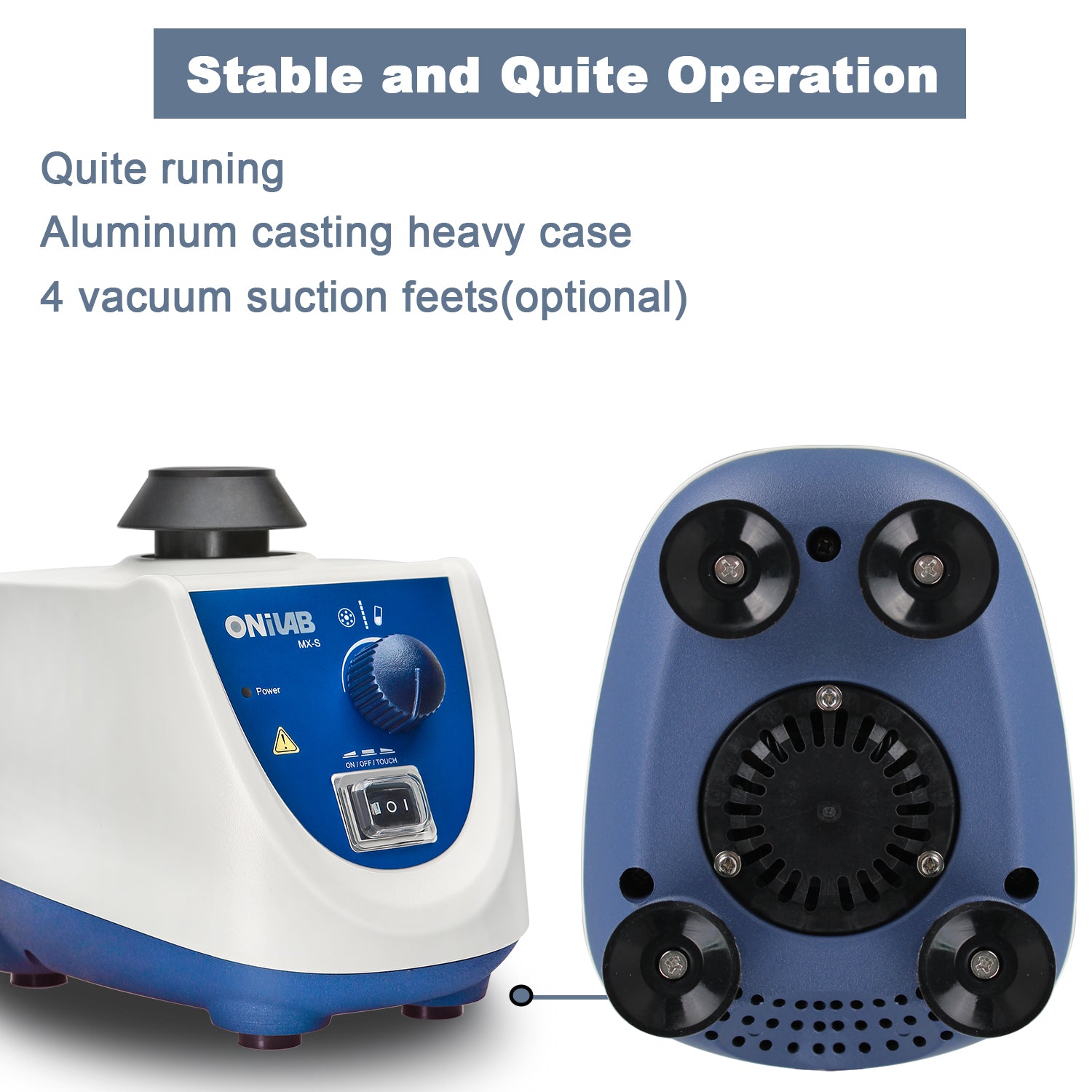

- Robust aluminum-cast construction for stable operation and can last for years
- Specially designed vacuum suction feet for body stability
- Quiet operation and low vibration, Full containers of 50mL can be activated for mixing within 5seconds
- Wide range of optional accessories for various applications （need to order seperately）

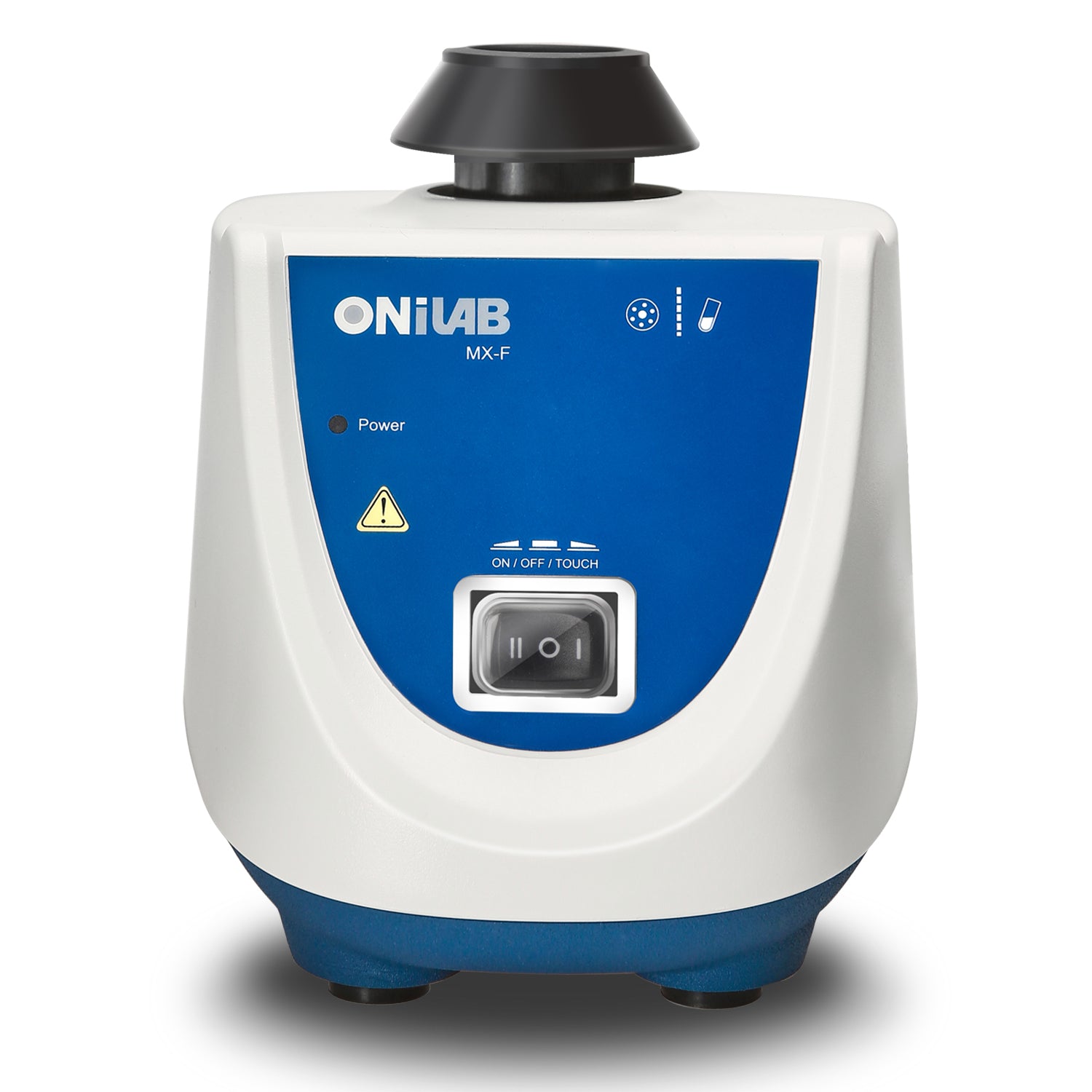

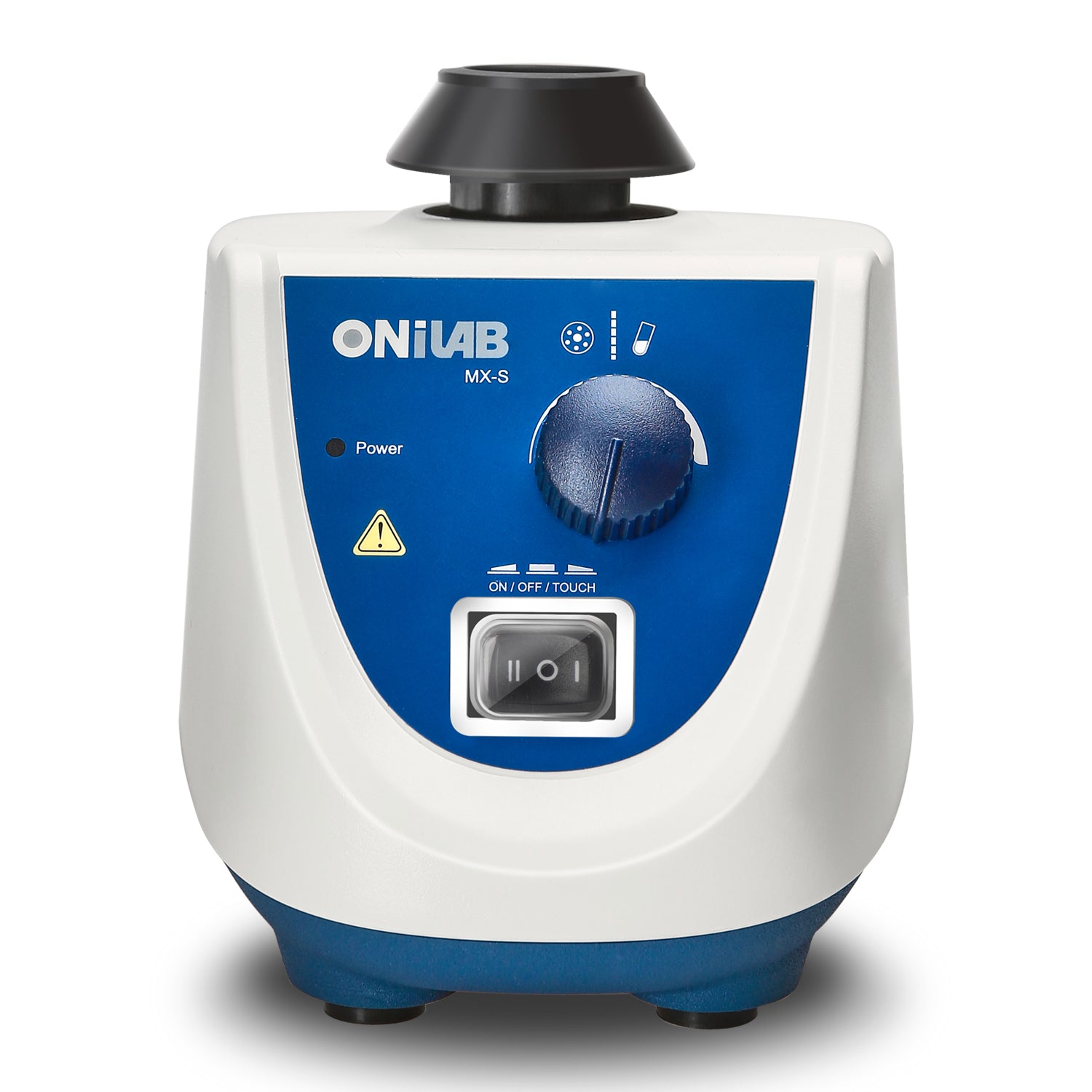

ONiLAB Vortex Mixers are ideal instruments for mixing most liquid in 5 seconds or less in tubes, re-suspension of cells, using an eccentric mechanism. They are widely used in biological, research ,chemical ,clinical and education applications and could also be used for nail polish mixing, eyelash adhesive and acrylic paint mixing.
Specifications:
- Operation mode:Continuous/touch operation
- Type of mixing :Orbital
- Orbital diameter:4mm
- Speed range:0-3000rpm(Various Speed)/3000rpm(Fixed Speed)
- Speed display:Scale
- Motor rating input:58W
- Motor rating output:10W
- Permissible ambient temperature:5-40 °C
- Permissible relative humidity:80%rRH
- Protection class:IP21
| Image | Model | Length | Wide | High | bore diameter |
 |

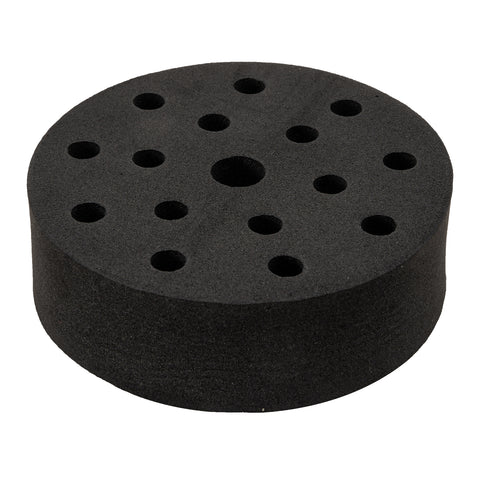

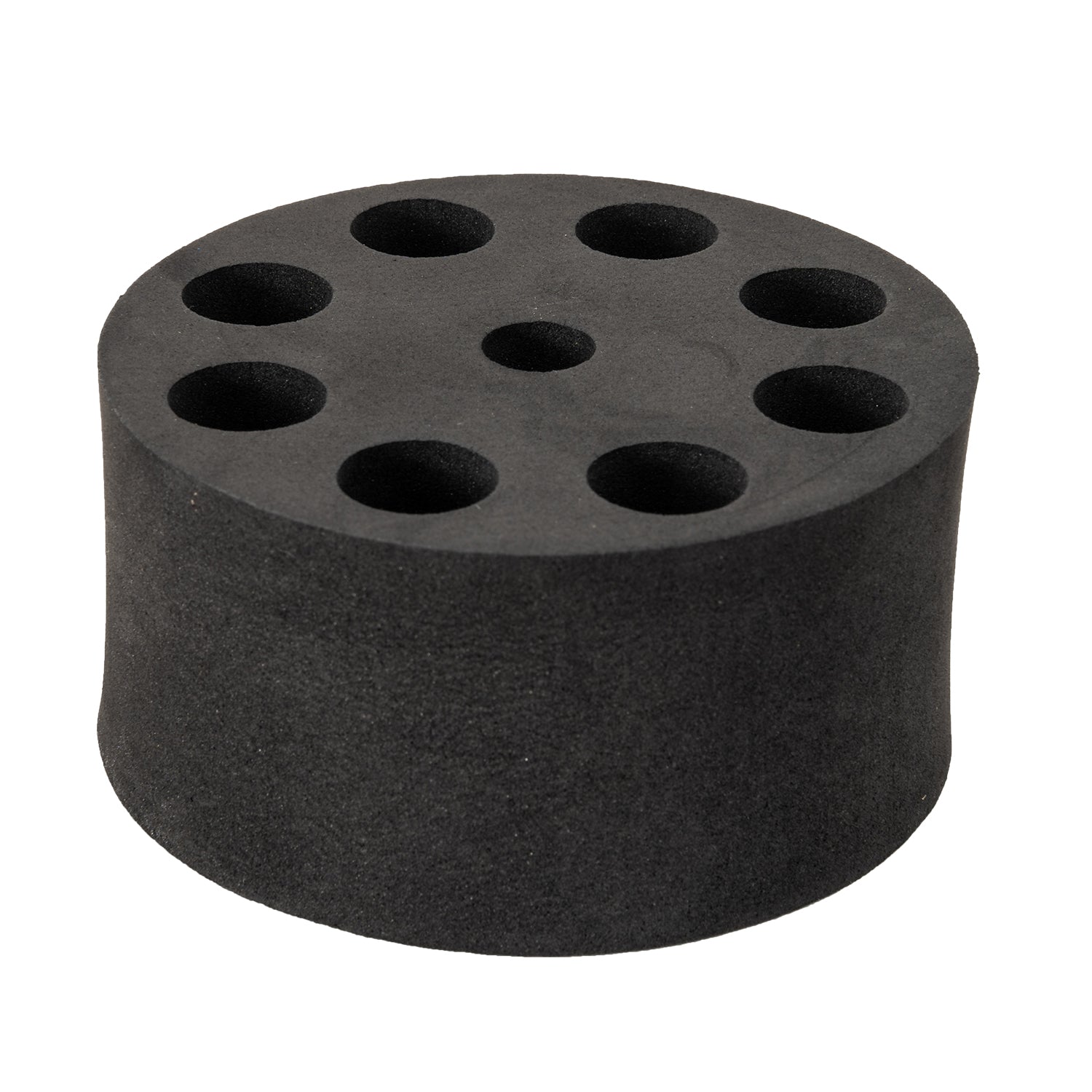

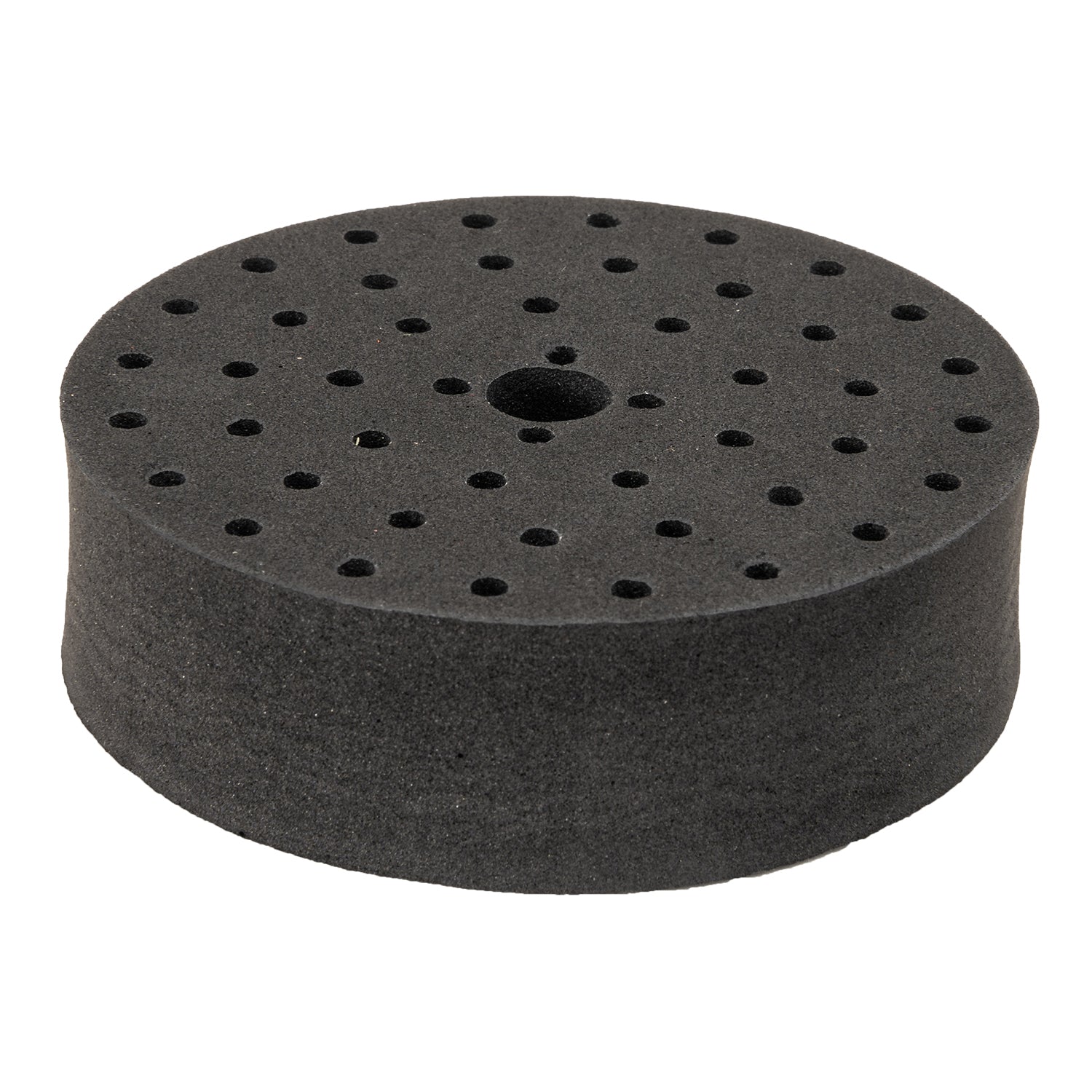

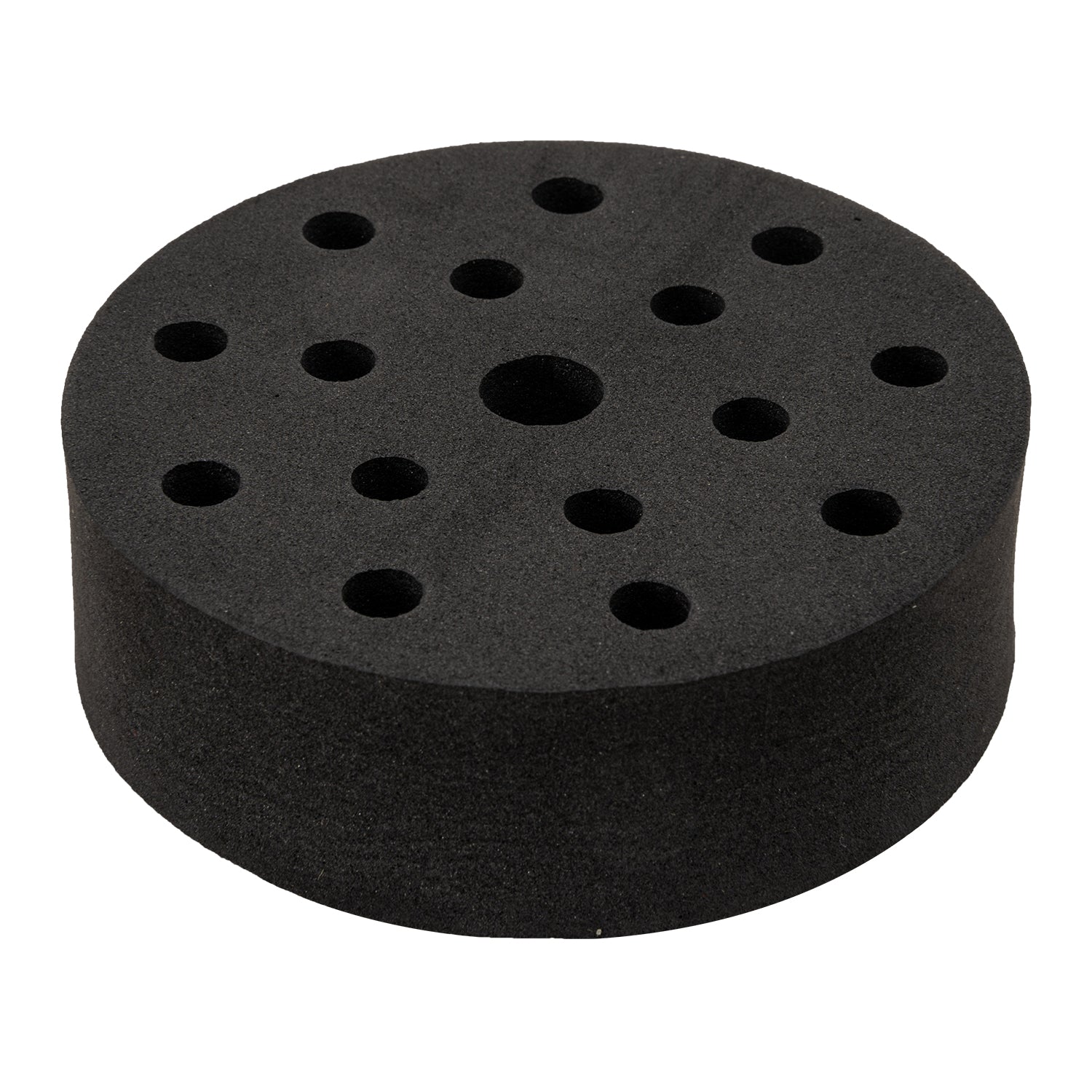

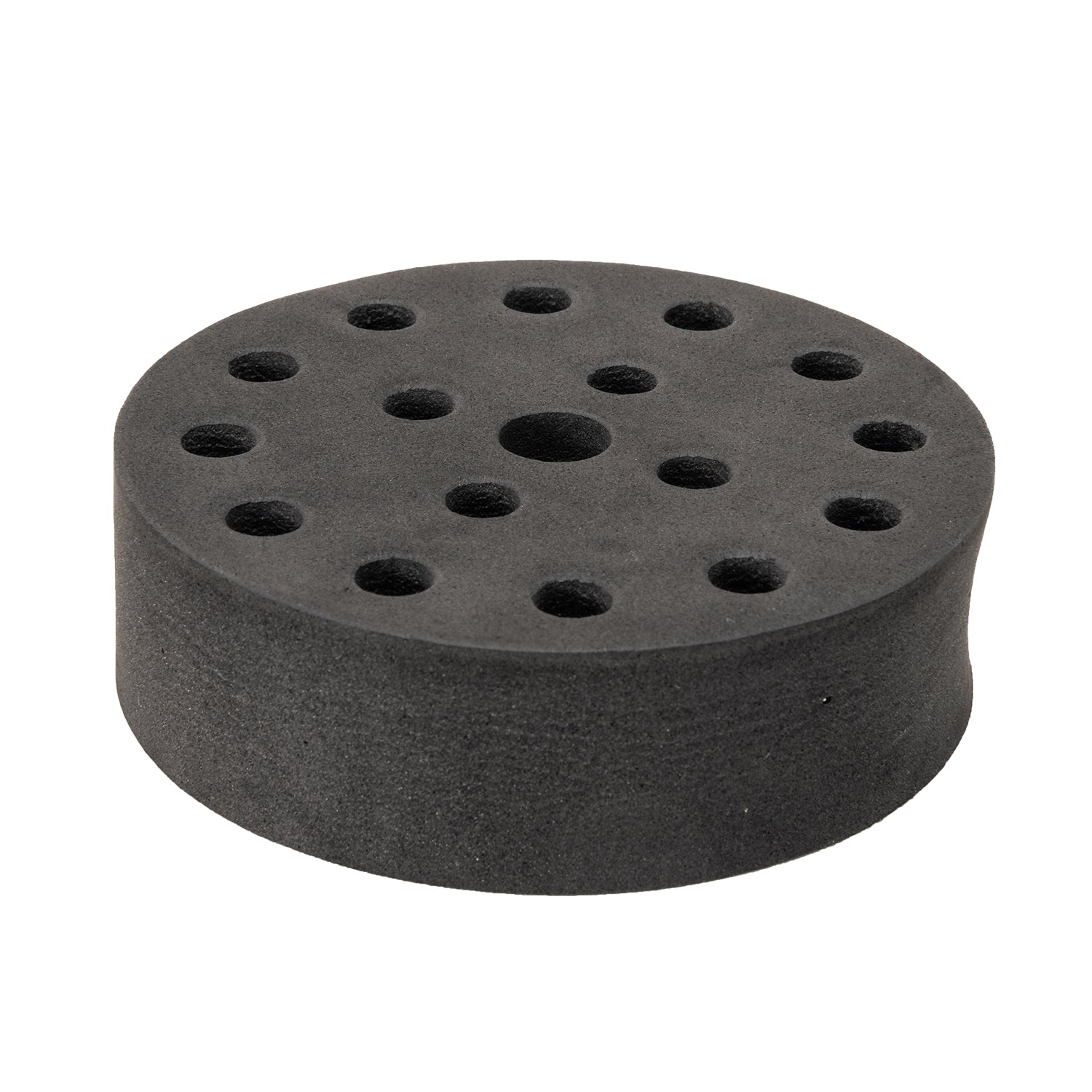

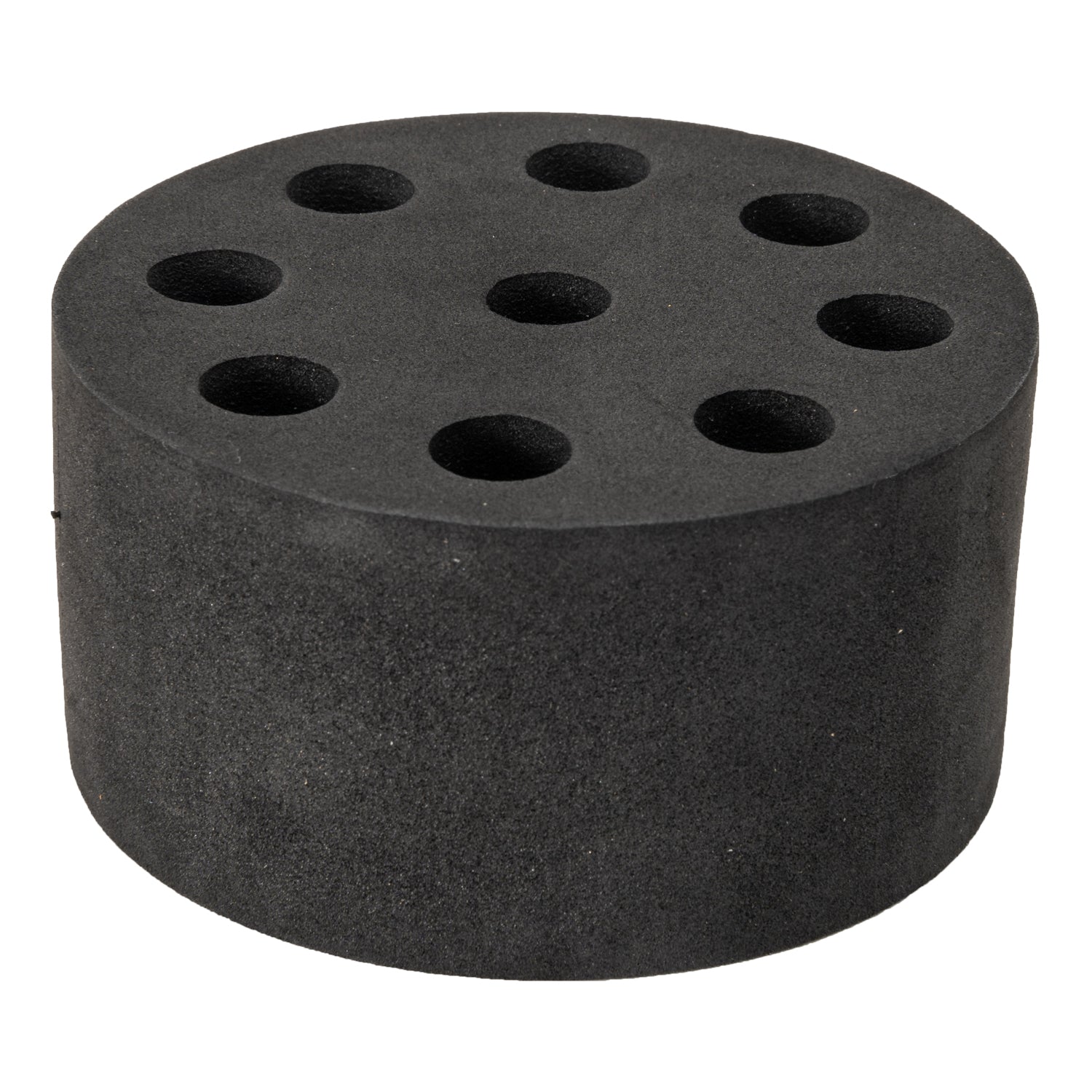

Tube Insert 6mm(1mL) | 14 | 10 | 2.5 | Ø6mm |
 |
Tube Insert 10mm(1.5-2mL) | 14 | 10 | 3 | Ø10mm |
 |
Tube Insert 12mm(5mL) | 14 | 10 | 2.5 | Ø12mm |
 |
Tube Insert 16mm(10mL) | 14 | 10 | 4.5 | Ø16mm |
 |
Tube Insert 20mm(10-15mL) | 14 | 10 | 5 | Ø20mm |
| Platform Pad | 14 | 13 | 0.5 | ＜Ø99mm tubes and small vessels |
